Duo

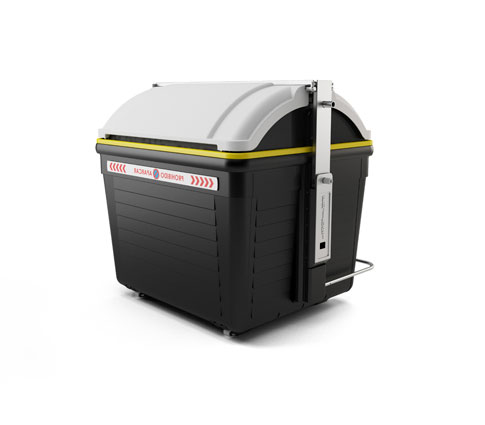

3200L METAL, SIDE - LOAD CONTAINER

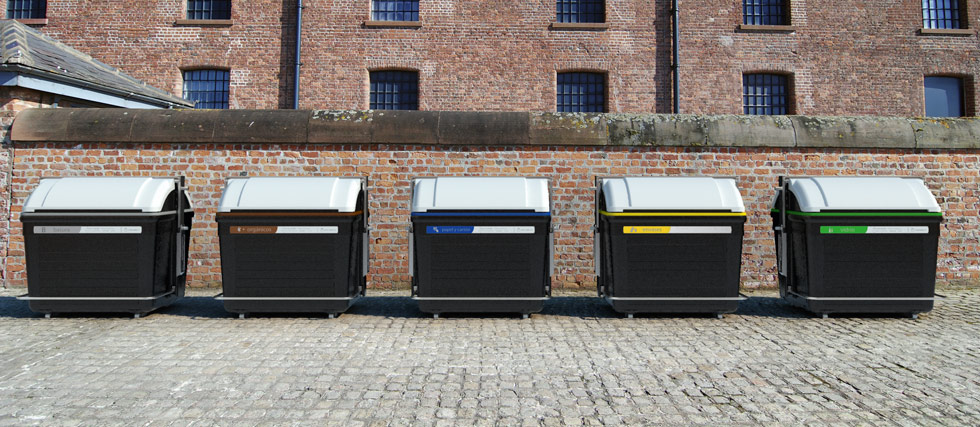

Duo combines the sturdiness of a metal container with the sophistication of a plastic one. The metallic elements (the tank and the structural parts) match perfectly with the lids and the sides, which are made of plastic.

Duo is based on "Metal", a renowned and highly durable container. Its revisited design, with soft volumes, rounded lines and plastic lids, achieve a modern, sophisticated and distinguishing aesthetic.



MORE DURABLE, FIREPROOF AND RUSTPROOF

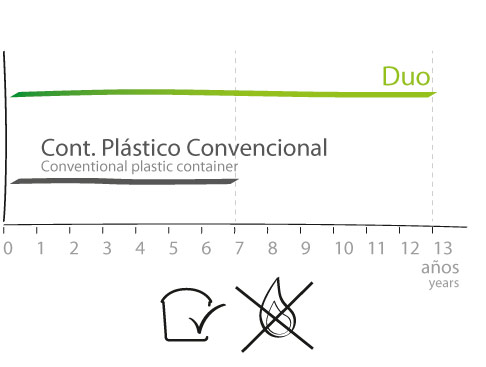

Its body and other metallic structural elements make the Duo container almost indestructible. The estimated useful life of a plastic container is 7 years, but metal containers have an estimate useful life of 13 years due to the quality of its construction.

Due to its structure, Duo container can be recovered after a fire, reducing the high annual replacement costs.

Completely hot-dip galvanized. The rest of parts are made of stainless steel, aluminium or plastic.

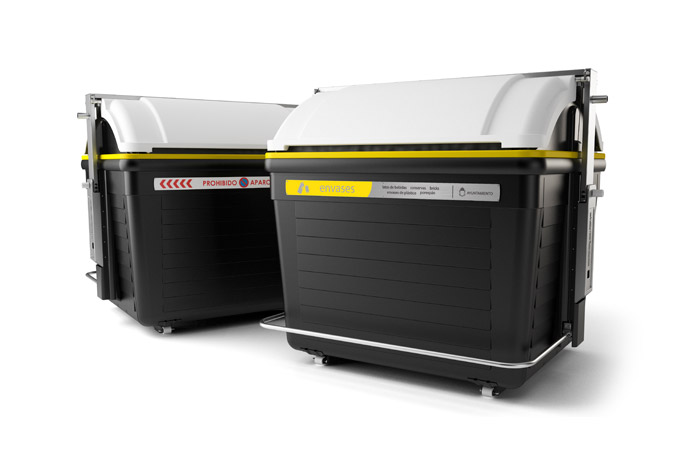

DUO’S ANATOMY

Duo is mainly made up of a metallic tank and plastic lids. All the parts have been designed in a consistent way, following a global style, so a great integration degree among all of the parts is achieved.

Click on each item to see more content.

  • Tapa de usuario

    METAL TANK

    Made of a 3mm embossed sheet.

    Cinturón

    RUBBER STOPS

    On lid and pedal

    Eje de tapas

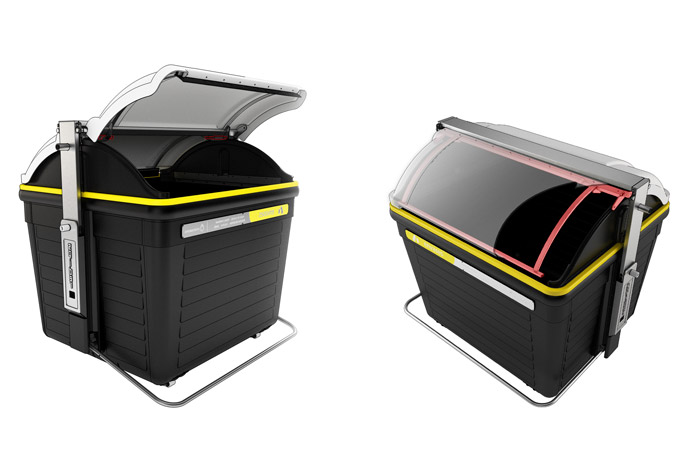

    METAL INNER STRUCTURE OF LIDS

    Great rigidity and stability

    Tapa de vaciado

    METAL UPPER STRUCTURE

    It prevents the rotation of lids

    Pedal

    PLASTIC TRIM

    Better settlement of lids

  • Tapa de usuario

    3M REFLECTIVE

    High quality

    Cinturón

    NO PARKING SIGN

    Integrated

    Eje de tapas

    PRACTICAL EXAMPLES

    About what kind of waste can be introduced

    Tapa de vaciado

    THE TYPE OF WASTE

    Indicated with color, icons and text

Main values

  • The baked polyester paint slows the aging of Duo, ensuring its finish and optimizing the adherence of paint to metal (without flaking). The expected integrity of paint is over 10 years under normal conditions of exposure and use.
  • Its renewed design, adapted to modern times, combine the sturdiness of the metal body with the friendly appearance of the plastic lids.
    The incorporation of plastic lids and other functional elements in plastic with a perfectly matte finish provide Duo with a touch of sophistication.
  • It is possible to minimize to the maximum the noises, by the system of buffer of the lids and installing rubber bumpers on the lid and pedals.
  • All of the plastic and metal materials used are 100% recyclable and can be turned into raw materials again. This is why a part of its economic value can be recovered by selling them.

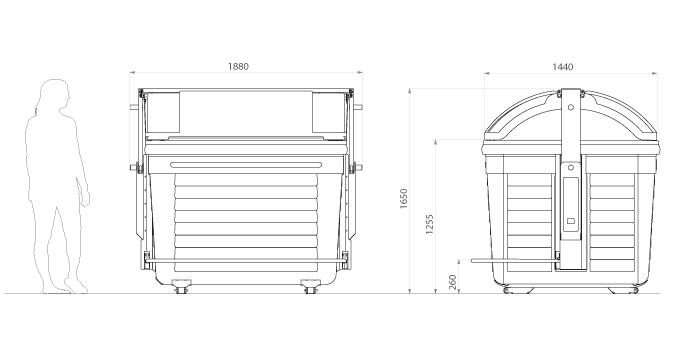

Duo container

Nominal volume: 3200l

Real volume: 3100l

Body volume: 2500l

Inner width: 1360mm

Inner length: 1550mm

Inner height: 1160mm

Weight: 210Kg

MMA: 1280Kg

Hoisting axis-floor distance: 1050mm

Maximum opening of lid: 580mm

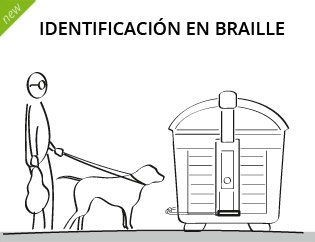

  • Possibility of including waste identification plates in Braille, making it easier for the blind people to dispose MSW.

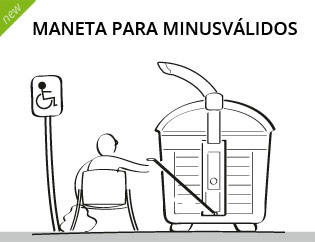

  • It has been added a manually operated lever which is connected to the pedal by means of a bolted joint, which allows operating the pedal without need to press it.

    * Only in containers with pedal

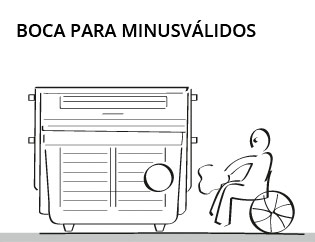

  • The container features a rectangular aperture with an inner trap door on one side, which allows introducing the waste under the level of the lids.
